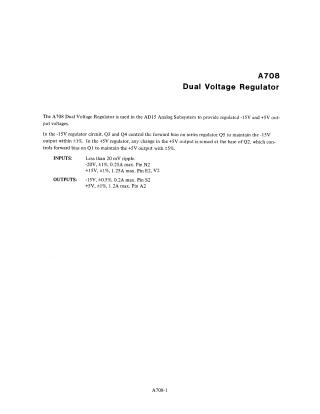

A708 Dual Voltage Regulator

Summary: This document provides a technical overview of the A708 Dual Voltage Regulator, which is designed to provide regulated -15V and +5V outputs for the AD15 Analog Subsystem. It explains the regulation method, noting that Q3 and Q4 maintain the -15V output, while Q2 controls the +5V output. Additionally, the document lists the specific input voltage requirements and the corresponding output specifications with their associated pin numbers.
