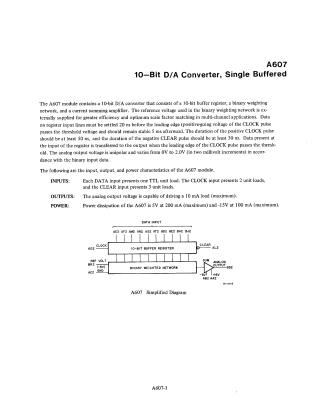

10-Bit D/A Converter, Single Buffered

Summary The A607 is a 10-bit digital-to-analog converter module that uses a 10-bit buffer register and a binary weighting network. It features an externally supplied reference voltage to allow for better scale factor matching in multi-channel systems. The device operates with specific timing requirements for its clock and clear pulses, and produces a unipolar analog output ranging from 0V to 2.0V with 2mV increments. The module is compatible with TTL input loads, can drive a 10mA load, and requires both +5V and -15V power supplies.
