Digital-Analog Conversion Module Type A606

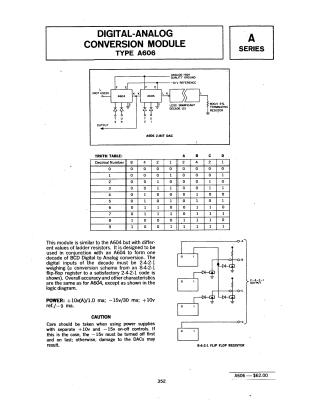

Summary: This document provides technical specifications and operational details for the A606 Digital-Analog Conversion Module. This module is designed to work in conjunction with the A604 module to facilitate BCD (Binary Coded Decimal) digital-to-analog conversion using a 2-4-2-1 weighing scheme. Included in the document are:

• Logic and Circuit Diagrams: Illustrations showing the 2-bit DAC configuration and the 8-4-2-1 flip-flop register.
• Truth Table: A reference table mapping decimal numbers 0–9 to their corresponding binary inputs and outputs.
• Power Requirements: Electrical specifications, including power ratings for +10v, -15v, and +10v reference inputs.
• Operational Caution: A warning to ensure the -15v power supply is switched off first when using separate power controls to prevent damage to the DACs.
