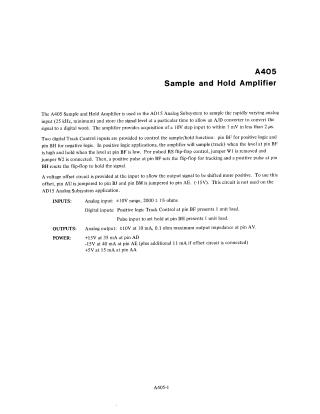

A405 Sample and Hold Amplifier

Summary The A405 Sample and Hold Amplifier is a component designed for the AD15 Analog Subsystem, capable of sampling rapidly varying analog signals (minimum 25 kHz) and holding them for A/D conversion. It provides acquisition of a 10V step to within 1 mV in under 2 µs. The device features flexible control options, including track control for both positive and negative logic, and a mode for pulsed RS flip-flop operation via specific jumper configurations. Additionally, it includes an optional voltage offset circuit and lists specific input, output, and power requirements for integration.
