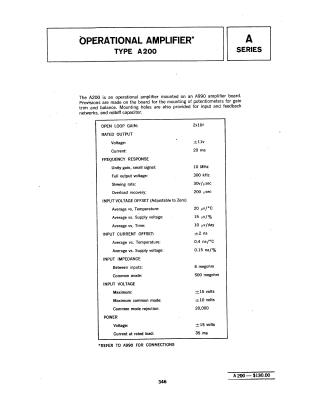

Operational Amplifier Type A200

Summary This document provides the technical specifications for the Type A200 operational amplifier, which is mounted on an A990 amplifier board. The board includes features for gain trim, balance, and input/feedback capacitors. Key performance metrics detailed include:

• Gain: An open-loop gain of 2x10⁶.
• Output: Rated for ±11v at 20 mA.
• Frequency Response: A 10 MHz unity gain bandwidth, 30v/µsec slew rate, and 200 µsec overload recovery.
• Input Characteristics: Features high input impedance (6 megohm between inputs, 500 megohm common mode) and adjustable voltage offset.
• Power Requirements: Operates at ±15 volts with a current capacity of 35 mA at rated load.
