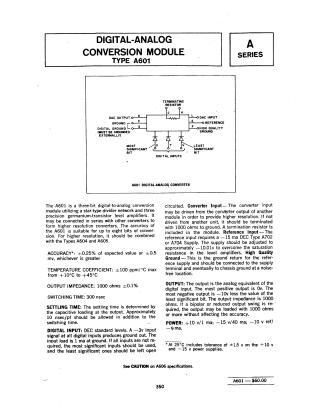

Digital-Analog Conversion Module Type A601

Summary The A601 is a three-bit digital-to-analog converter module that uses a star-type divider network and precision germanium-transistor level amplifiers. It is designed for applications where high speed (300 nsec switching time) is required and can be cascaded with other modules (such as the A604 or A605) to achieve higher bit-depth resolution. Key specifications include an accuracy of ±0.25%, an output impedance of 1000 ohms, and a temperature coefficient of ±100 ppm/°C. It accepts standard DEC digital input levels and requires external power supply connections for operation.
