LN17 and LN17ps Printers Quick Reference Guide Control Panel

This document is a quick reference guide for LN17 and LN17ps printers, detailing the control panel menu hierarchy, navigation, paper handling, and jam clearing procedures.

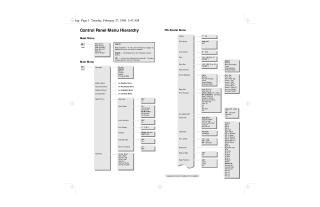

It provides a comprehensive breakdown of the printer's control panel menus, including the Reset Menu, Main Menu (Language, Mailbox, PCL Emulat, PostScript, Interface, System, Test), PCL Emulat Menu (settings like Resolution, Print Quality, Duplex), PostScript Menu (similar settings), and Interface Menu (Parallel, LocalTalk, Ethernet port configurations). The guide explains how to navigate these menus using the control panel buttons to select options, change settings, and accept/cancel changes.

Additionally, the document illustrates correct paper orientation for various paper types (letterhead, drilled paper, envelopes, postcards) when loaded into the Main/Lower Tray and Front Tray. A substantial section is dedicated to troubleshooting and clearing paper jams from various locations within the printer, including the Main Tray, Front Tray, Lower 1/2 Trays, Envelope Feeder, OCT, Mailbox/Collator, Print Cartridge, during Paper Mismatch, Misfeed at Startup, and Paper Exit/Duplex Module. Finally, it provides instructions for opening a Mailbox/Collator bin, including steps for password-protected access.
