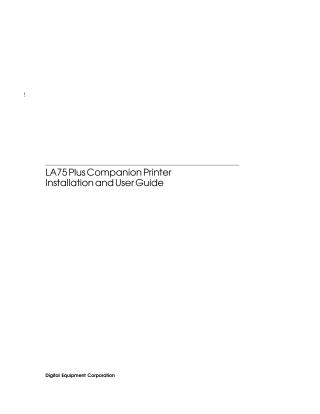

LA75 Plus Companion Printer Installation and

This document is a comprehensive installation and user guide for the LA75 Plus Companion Printer, designed for users of all experience levels. It details how to set up, operate, configure, and maintain the printer.

Key aspects covered include:

• Installation: Step-by-step instructions for unpacking, selecting a suitable site, familiarizing with printer components, installing the power cord and ribbon cartridge, running a self-test, and connecting the printer to various computer systems (Digital, PC compatible) via serial or parallel ports.
• Operation: Explanation of the operator control panel, including switches and indicators for functions like Ready, Fault, Quiet, Print Quality (Letter Quality, Draft), Protocol (DEC, IBM), Line Feed (LF), and Form Feed (FF).
• Paper Handling: Detailed procedures for loading paper using rear, single-sheet, and bottom-loading methods, along with instructions for adjusting the printhead for different paper thicknesses. It highlights new features such as "Document on Demand" and "Automatic Viewing" for efficient paper management.
• Configuration: Guidance on accessing and changing the printer's configuration settings (e.g., protocol, baud rate, data bits, parity) to ensure proper communication with the host system.
• Maintenance & Troubleshooting: Tips for general maintenance, replacing ribbon cartridges and fuses, and diagnosing and correcting common printer problems.
• Reference Information: Provides detailed specifications for the printer and paper, a summary of set-up features, and quick reference guides for DEC PPL2 and IBM Proprinter X24E control codes.

The LA75 Plus is an impact dot-matrix 24-pin printer, suitable for desktop business applications, featuring flexible paper handling, optional four-color printing, and automatic switching between serial and parallel interfaces. It offers print qualities including Draft (250 CPS), Near Letter Quality (125 CPS), and Letter Quality (83 CPS).
