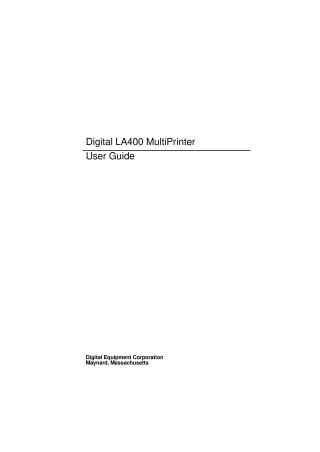

Digital LA400 MultiPrinter

This user guide provides comprehensive instructions for the Digital LA400 MultiPrinter, a robust and reliable dot-matrix printer designed for industrial and heavy-duty applications.

The document covers the printer's key features, including flexible paper handling through various paths (Push-Front, Push-Rear, Manual, Pull, Push+Pull), dual connectivity (DEC-423 serial and Bitronics parallel interfaces with DEC PPL2, EPSON ESC/P2, and IBM Proprinter XL24E protocols), and numerous printing capabilities (fonts, pitches, barcodes, multipart forms). It highlights ease-of-use features like automatic print gap adjustment, paper parking, and customizable macros for different print tasks, contributing to low cost of ownership.

The guide details the printer's physical components, the operator panel's functions, and various operating states and modes. A significant portion is dedicated to configuring the printer via Set-Up mode, allowing users to customize communication settings, print parameters (like form length, margins, font, vertical pitch, print impact, and gap), and manage macros for quick changes. It also provides procedures for loading and managing different paper types, performing self-tests and Hex Dump printing, adjusting mechanical settings (bidirectional alignment, first printable line, tear-off position), routine maintenance (cleaning, ribbon replacement), and troubleshooting common issues. Technical specifications, LCD display messages, and quick references for supported protocols and character sets are included in the appendices.
