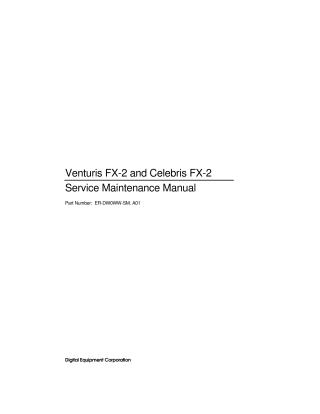

Venturis FX-2 and Celebris FX-2 Service

This Service Maintenance Manual provides comprehensive troubleshooting guidance and parts replacement procedures for Digital Equipment Corporation's Venturis FX-2 and Celebris FX-2 personal computers. It covers detailed product descriptions and specifications for various models, including low profile and short tower configurations, along with their video, HDD, and RAM details. The manual outlines the BIOS Setup Utility for configuring system settings, power management, and boot options, and discusses the Flash Utility for BIOS updates. It also describes factory-installed system software, utilities, diagnostics (including ClientWORKS and S.M.A.R.T. Monitor), and procedures for configuring hardware and restoring software. A significant portion is dedicated to troubleshooting various computer issues, providing detailed problem/cause/action tables for components like disk drives, monitors, audio, CD-ROM, and network interfaces, as well as listing POST messages and beep codes. Finally, it includes an Illustrated Parts Breakdown (IPB) for both low profile and short tower systems, along with step-by-step instructions for removing and replacing components such as the main logic board, memory (DIMMs), processor, power supply, and expansion boards, emphasizing anti-static precautions and recommended tools. Device mapping information for memory addresses, I/O addresses, interrupt levels, and DMA channels is also provided.
