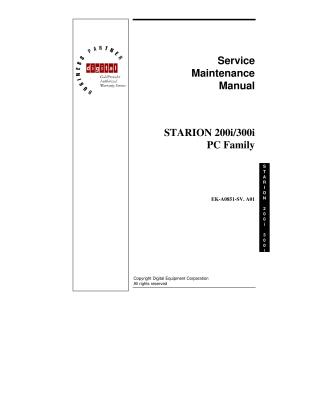

Service Maintenance Manual Starion 200i/300i PC Family

This Service Maintenance Manual serves as a comprehensive guide for troubleshooting and maintaining the Digital STARION 200i/300i PC Family. It emphasizes that repairs should only be performed by A+ certified engineers at the subassembly/module level, not component level.

The manual begins by detailing the product features of these high-performance multimedia PCs, including their 75MHz Pentium microprocessors, expandable RAM (8MB to 128MB), S3 Trio 32 onboard video, double-speed CD-ROM, and integrated fax/modem/sound cards. It then provides extensive instructions on using system utilities like PHLASH.EXE for BIOS upgrades and recovery, Galileo and S3refrsh for video settings, and the BIOS Setup Utility for configuring various hardware parameters such as hard disk options, memory, boot settings, integrated peripherals, and security options.

Service procedures are outlined with strong emphasis on safety requirements, including ESD precautions. It lists recommended tools and materials, and provides step-by-step guidance for component removal and replacement, covering the computer cover, diskette drives, main logic board, power supply, riser card, expansion boards, and internal mass storage devices. Instructions for installing a higher performance CPU, CPU voltage regulator, and replacing the Real-Time Clock (RTC), as well as connecting diskette and IDE devices, are also included.

A significant portion of the manual is dedicated to troubleshooting, offering initial steps, interpreting beep codes, understanding POST and boot error messages, and providing specific solutions for common issues related to the computer, disk drives, monitors, and CD-ROMs, along with explanations of QAPlus/FE error messages.

Finally, the document includes technical references for device mapping, I/O addresses, computer interrupt levels, and DMA channel assignments. It concludes with pass/fail criteria for final acceptance testing, covering POST tests and various QAPlus/FE module diagnostics, and appendices detailing modem/sound card settings and useful online resources for product information and support.
