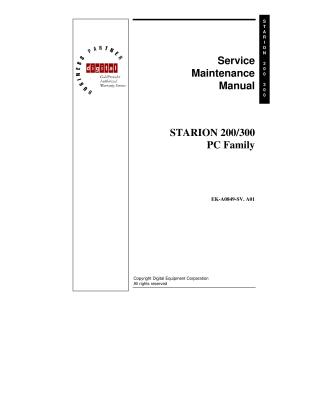

Service Maintenance Manual STARION 200/300 PC Family

This document is a comprehensive Service Maintenance Manual for the Digital STARION 200/300 PC Family, published in January 1996 and intended for A+ certified engineers. It covers the product's hardware specifications (including AMD 486DX2/66mhz CPU, expandable RAM, S3 Trio 32 video, CD-ROM on Starion 300, and integrated fax/modem/sound card features). The manual details server utilities and configuration, such as BIOS updates (PHLASH.EXE), video settings (TRIORFSH.EXE, SMODE.EXE), and extensive BIOS Setup options for various computer settings. It provides detailed service procedures, emphasizing safety precautions, recommended tools, and step-by-step instructions for the removal and replacement of components like the main logic board, CPU, memory, disk drives, power supply, and battery. Additionally, the document offers in-depth troubleshooting guides with beep codes, POST messages, and specific problem-solution tables for computer, disk drive, and monitor issues, alongside device mapping information for memory, I/O, interrupts, and DMA channels. It concludes with pass/fail criteria for system acceptance tests and references to related documentation and online support resources.
