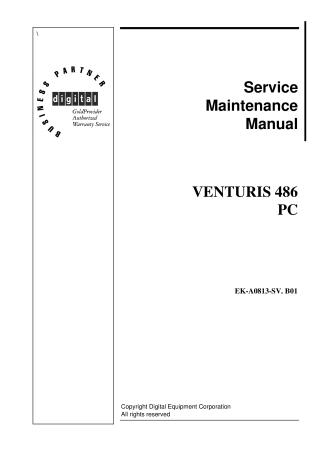

Service Maintenance Manual VENTURIS 486 PC

This Service Maintenance Manual is a comprehensive guide for A+ certified engineers responsible for servicing the Digital VENTURIS 486 PC family. Published in February 1996, it provides detailed information on product description, system utilities, configuration, and extensive troubleshooting procedures.

Key contents include:

• Product Overview: Details the VENTURIS 486 Slimline and Full Profile models, highlighting technologies of version 1.0 and 2.0 main logic boards, including advanced microprocessors, Plug and Play features, power management, onboard video, and BIOS enhancements.
• System Utilities & Configuration: Covers the use of utilities like PHLASH.EXE for BIOS upgrades/restores, EPP3SMC.EXE for EPP configuration, and various video drivers (SMODE.EXE, SMTR.EXE). It also provides a detailed explanation of the BIOS Setup Utility options for configuring hardware and software settings.
• Service Procedures: Outlines safety requirements, recommended tools, and diagnostic software. It includes step-by-step instructions for unlocking and removing covers, identifying computer components, configuring expansion slots and main logic board jumpers, and managing memory configurations. Detailed procedures are given for the removal, installation, and replacement of parts such as diskette drives, main logic boards, power supplies, riser cards, CPUs, video memory, and the computer battery.
• Troubleshooting: Features extensive tables for diagnosing issues using beep codes, POST and boot messages, and specific problems related to the computer, disk drives, and monitors, along with their probable causes and recommended actions.
• Device Mapping: Provides tables for memory, I/O address, computer interrupt levels, and PCI configure space address mapping.
• Pass / Fail Criteria: Defines the acceptance tests, including successful completion of POST and QAPLUS/fe module tests, and the successful bootstrap of supported operating systems.

The manual emphasizes that repairs should be performed by certified engineers at the subassembly/module level, cautioning against component-level modifications to avoid safety hazards and warranty issues. It also includes appendices with service notes and useful information on related documentation and online resources.
