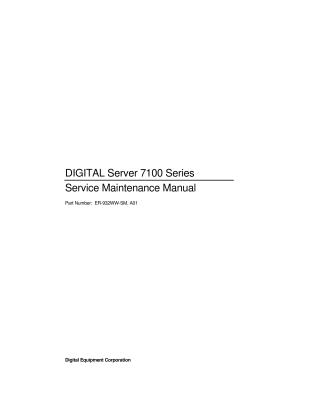

DIGITAL Server 7100 Series Service

This manual serves as a comprehensive troubleshooting and maintenance guide for the DIGITAL Server 7100 Series. It is intended for A+/DIGITAL Server certified engineers.

The document covers:

• Product Description: An overview of the server's features, including its high-performance, scalability, Pentium Pro processors (up to four SMP), ECC memory (up to 4 GB), dual-channel Ultra SCSI/RAID storage backplane with hot-swap capability, dual 450W power supplies, and internal sensors for monitoring. It also details server expansion options, naming conventions, and product model numbering.
• Server Software and Utilities: Instructions on using essential software tools like ServerWORKS Quick Launch (for OS installation, drivers, and documentation), System Configuration Utility (SCU) for configuring hardware and system settings, RAID Configuration Utility, BIOS Upgrade Utility, SCSISelect Utility for configuring SCSI devices, and diagnostic software (AMIDiag base diagnostics and DIGITAL vendor extended tests).
• SCU Features: Detailed descriptions of various configurable settings within the System Configuration Utility for components like system processors, memory, diskette drives, boot options, integrated peripherals, keyboard features, shadow options, security settings, cache options, and advanced control features (e.g., CPU to PCI write posting, ECC interrupt, APIC & MP table).
• Troubleshooting: General procedures for diagnosing server problems, detailed diagnostic software usage, methods for obtaining server information via SCU and ServerWORKS Manager, interpretation of POST and Operator Control Panel (OCP) messages (including error codes, status displays, and beep codes), and acceptable voltage and temperature ranges for processors and VRMs. It provides specific troubleshooting tables for common issues related to server power, display, booting, memory, keyboard, mouse, disk drives (SCSI, RAID), tape drives, and cooling fans.
• FRU Replacement: Illustrated parts breakdown and step-by-step procedures for replacing Field Replaceable Units (FRUs) such as power supplies, diskette and CD-ROM drives, cooling fans, speakers, the main logic board, server battery/Real Time Clock (RTC), storage backplane, and casters. It also includes guidelines for installing additional memory (DIMMs) and processor modules, as well as updating the BIOS.
• Device Mapping: Provides tables for processor memory address maps, processor I/O address maps, I/O address maps, server interrupt levels, DMA channel assignments, and PCI configuration space address maps.

The manual emphasizes safety precautions, particularly regarding electrostatic discharge, and recommends that only certified engineers perform repairs. It also provides URLs for obtaining the latest product information, technical support, and software updates.
