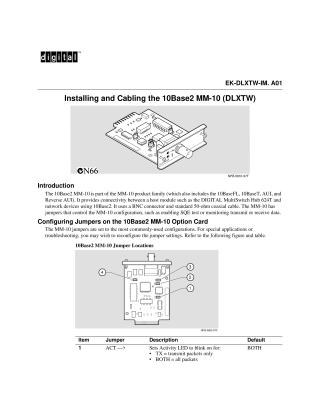

Installing and Cabling the 10Base2 MM-10 (DLXTW)

This document describes the 10Base2 MM-10, a module that connects a DIGITAL MultiSwitch Hub 624T to 10Base2 network devices using a BNC connector and 50-ohm coaxial cable. It highlights the module's configurable jumpers for functions like Activity LED behavior (ACT->), Signal Quality Error (SQE) testing, coaxial cable grounding (COAX GND), and termination (TERM). Default settings for these jumpers are provided.

The installation procedure outlines how to install the hot-swappable MM-10 into a Carrier Card slot, requiring a Phillips-head screwdriver. Key steps include aligning and seating the module, securing it with screws, and attaching the 10Base2 cable. Important notes specify that the Carrier Card (DLXMC-MA) must be pre-installed and emphasize correct TERM jumper configuration based on whether the MM-10 is at the end of a cable segment. Total cable length should not exceed 185 meters. For additional configuration details, users are referred to the DIGITAL MultiSwitch Hub 624T Installation and Configuration manual.
