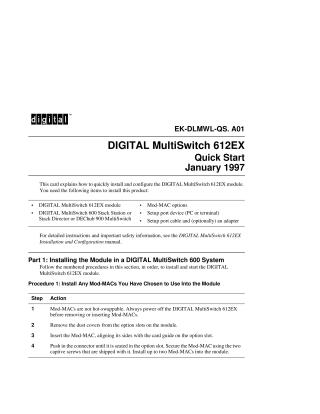

DIGITAL MultiSwitch 612EX Quick Start

This document serves as a quick start guide for installing and configuring the DIGITAL MultiSwitch 612EX module. It outlines the necessary items for installation and provides step-by-step procedures for two main scenarios:

1. Installing the Module in a DIGITAL MultiSwitch 600 System: This section details the process of installing Mod-MACs (emphasizing they are not hot-swappable and require powering off the system), placing the module into a Stack Director or Stack Station, cabling various Mod-MAC types (10BaseFL, 100BaseFX, 100BaseTX) and 10BaseT ports, and finally, installing clearVISN and starting network management software.
2. Installing the Module in a DEChub 900 MultiSwitch: This section covers preparing for installation by checking power requirements and pre-installing Mod-MACs. It then guides on installing the module, noting that it is hot-swappable in this system.

Finally, the document provides steps for Configuring the Module by connecting a terminal to the setup port, setting baud rates, accessing the module's installation menu from either system type, and configuring product-specific options before restarting the module for changes to take effect.
