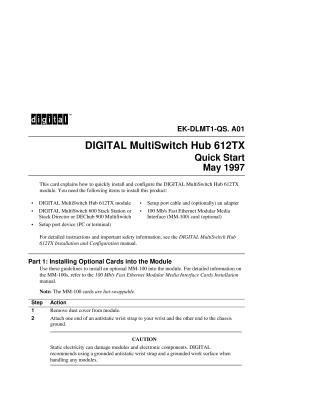

DIGITAL MultiSwitch Hub 612TX Quick Start

This document serves as a quick start guide for the installation and initial configuration of the DIGITAL MultiSwitch Hub 612TX module. It outlines the essential items required for setup, including the 612TX module, a DIGITAL MultiSwitch 600 Stack Station, Stack Director, or DEChub 900 MultiSwitch, a setup port device (PC or terminal), cables, and an optional 100 Mb/s Fast Ethernet Modular Media Interface (MM-100) card.

The guide is structured into five main parts:

1. Installing Optional Cards: Details the procedure for installing hot-swappable MM-100 cards into the module, emphasizing safety precautions like using an antistatic wrist strap to prevent static electricity damage.
2. Installing the Module into a Stack Director or Stack Station: Provides steps for physically securing the module into the chassis, connecting MM-100 and 100BaseTX cables, verifying Power OK and Module OK LEDs, and a brief mention of clearVISN software for network management.
3. Installing the Module in a DEChub 900 MultiSwitch: Explains the installation process for a DEChub 900, including pre-installation steps like checking power requirements and ensuring the module is fully seated and locked.
4. Cabling the Ports: Covers connecting cables to both MM-100 ports (including guidelines for 100BaseFX fiber-optic and 100BaseTX 8-pin MJ connectors) and the module's integrated 100BaseTX ports, specifying appropriate cable types (straight-through vs. crossover) for different remote devices.
5. Configuring the Module: Describes how to perform initial configuration using a setup port device connected to the relevant chassis. It specifies the necessary cables and adapters, a baud rate of 9600, and different procedures to access the "MS Hub 612TX INSTALLATION" menu for Stack Station versus Stack Director or DEChub 900 environments. It also notes that clearVISN software can be used for further configuration on Stack Director or DEChub 900 MultiSwitch systems and concludes with restarting the module.
