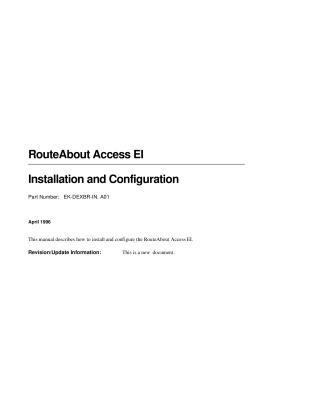

RouteAbout Access EI

This document is an installation and configuration guide for the Digital Equipment Corporation RouteAbout Access EI module, designed for both IP and MP software packages. It provides comprehensive instructions for installing the module as a standalone unit, or within a DEChub 90 or DEChub 900 MultiSwitch, highlighting its hot-swap capability.

Key areas covered include a detailed description of the module's features, indicators, and connectors, followed by step-by-step installation procedures for each deployment scenario. The guide also explains how to connect necessary port cables (setup and console), configure the module's IP settings (SNMP, in-band and out-of-band IP addresses, default gateway), and set up the ISDN port with specific parameters like local and remote dial numbers, PPP circuits, and call handling.

Troubleshooting information, primarily based on LED indicators, is provided to help diagnose and resolve issues during installation and operation. Appendices delve into connector assignments, adapter and cable connections, specific installation requirements for the United Kingdom, and a complete list of product specifications and available parts. The manual is intended for technical personnel responsible for setting up and maintaining the RouteAbout Access EI.
