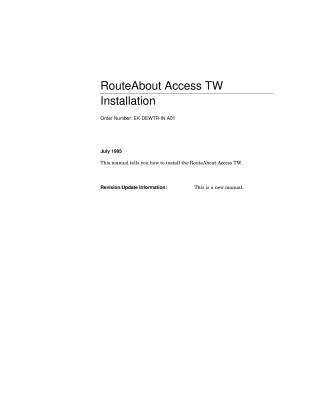

RouteAbout Access TW Installation

This manual provides comprehensive instructions for the installation and initial setup of the RouteAbout Access TW, a remote access router/bridge. Designed to connect remote Token Ring Local Area Networks (LANs) to corporate networks, the module offers multi-protocol solutions and can operate either as a standalone unit or integrated into a DEChub 900 MultiSwitch backplane, featuring hot-swap capability.

The document details the module's key features, including its FLASH EPROM technology, a console port, an external shielded Token Ring interface (supporting 4MBPS and 16MBPS), and two synchronous serial ports (supporting standards like EIA 232/V.28, V.35, and X.21). Installation procedures are outlined for both standalone deployment (on a table, wall, or rack) and integration into a DEChub 900. These steps include connecting cables, verifying power-up sequences, and interpreting LED indicators.

For setup, the manual guides users through configuring essential network parameters, such as setting an IP address (both in-band and out-of-band for DEChub installations), default gateway, SNMP read/write community, and Token Ring speed via a console terminal or the DEChub manager. Additional sections cover problem-solving using LED diagnostics, detailed connector and pin assignments, specific installation information for the United Kingdom, and complete product specifications, including operating environment, power, physical characteristics, and regulatory certifications (CE, CSA, FCC, TÜV, UL, VCCI).
