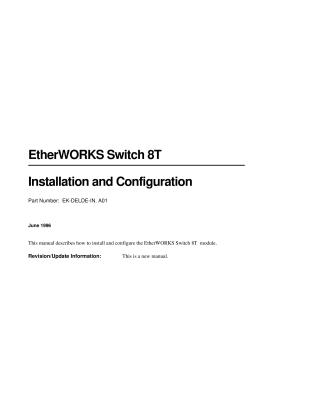

EtherWORKS Switch 8T

This document is a comprehensive installation and configuration manual for the EtherWORKS Switch 8T. It details the switch's features, including its eight IEEE 802.3-compliant ports (seven 8-pin MJ twisted pair, and one convertible between an 8-pin MJ or AUI connector), 10 Mb/s data rate, store-and-forward capability, and address learning (up to eight addresses per port, with flood mode for more).

The manual provides instructions for the physical installation, covering package contents, front and back panel descriptions (LEDs, console port, power connector), and how to connect the power adapter. It outlines rules for network configurations, including maximum cable lengths for UTP and AUI, and explains various network setups: single-switch, tree, and backbone configurations (using the AUI port or Media Attachment Units for flexible media connections). Important notes, such as enabling flood mode for switch-to-switch connections, are included.

A significant section is dedicated to the switch's terminal-based firmware commands, which enable users to manage ports (enable/disable, security, broadcast storm protection, flood mode, full duplex), direct Port 8's connector type (AUI, TP, or AUTO), save configurations, reset the switch, and display status information. Additionally, the document covers cable configurations, including pin assignments for 8-pin MJ and AUI connectors, and lists the product's operating and acoustical specifications, emphasizing its "no measurable noise emissions" characteristic. Information for documentation comments and ordering additional manuals is also provided.
