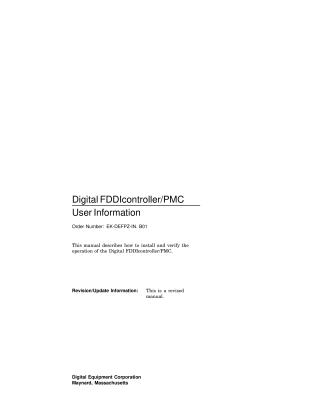

Digital FDDIcontroller/PMC

This manual serves as a guide for the installation and verification of the Digital FDDIcontroller/PMC network interface card (NIC). Designed for industry-standard computers with PCI mezzanine slots, the adapter enables direct connection to 100-megabits/second Fiber Distributed Data Interface (FDDI) networks.

The document covers two main models: the DEFPZ-AA (Fiber-Optic Single Attachment Station) and DEFPZ-UA (UTP Single Attachment Station). Key features of these adapters include their cost-effectiveness, full duplex capability, a DMA engine for high throughput, 1MB of buffer RAM, an on-board CPU, and drivers for Digital UNIX and OpenVMS, along with a Limited Lifetime Warranty.

Installation procedures are detailed, including checking package contents, preparing the computer (with emphasis on anti-static precautions), physically installing the adapter, installing necessary driver software, and connecting to the network using either fiber-optic or Category 5 UTP copper cables. The manual also provides instructions on how to verify successful hardware installation via LED indicators and confirm network operation using standard services like ping, telnet/rlogin, and ftp.

A dedicated section addresses problem-solving, offering diagnostic tables for identifying and resolving faults related to adapter installation, network connection, and network interconnectivity. Furthermore, the manual includes general information on the adapter's physical characteristics, functional components, operating specifications, and power requirements. It also guides users on how to access Digital's Management Information Bases (MIBs) and Request For Comments (RFCs) through electronic mail or FTP, and lists international technical support contact numbers.
