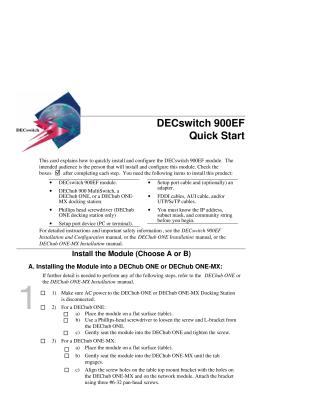

DECswitch 900EF Quick Start

This document serves as a quick start guide for the installation and configuration of the DECswitch 900EF module. It outlines the required components and provides step-by-step instructions for getting the module operational.

The guide is divided into three main sections:

1. Required Items: A checklist of items needed for installation, including the DECswitch 900EF module, a DEChub docking station (ONE, ONE-MX, or 900 MultiSwitch), a Phillips-head screwdriver, a setup port device and cable, network cables (FDDI, AUI, UTP/SCTP), and pre-requisite network information like IP address, subnet mask, and community string.
2. Module Installation: Instructions are provided for two scenarios:
   • Installing into a DEChub ONE or DEChub ONE-MX: Involves disconnecting AC power, physically seating and securing the module, and then reconnecting power and network cables.
   • Installing into a DEChub 900 MultiSwitch: Requires checking power availability, seating the module, verifying LED indicators, and connecting network cables.
3. Setup Port Cable Installation: Guidance on selecting the appropriate setup port cable and adapter, setting the setup port device's baud rate to 9600, and connecting the cable to the DEChub and the setup port device.
4. Module Configuration: This section details how to configure the module, again split by DEChub type:
   • For a DEChub ONE or DEChub ONE-MX: Steps to navigate the installation menu, configure IP settings (SNMP community, in-band and out-of-band IP addresses, subnet masks, default gateway), set out-of-band port speed, and configure module-specific options for FDDI, Ethernet, and IPX switch.
   • For a DEChub 900 MultiSwitch: Instructions to access the module via redirect mode, configure IP settings (SNMP community, in-band and out-of-band IP addresses, subnet masks, default gateway), and set module-specific options for the IPX switch and diagnostics.

The document advises users to consult the more comprehensive DECswitch 900EF Installation and Configuration manual or DEChub Installation manuals for detailed instructions and safety information.
