M-Series Power Strip Kit

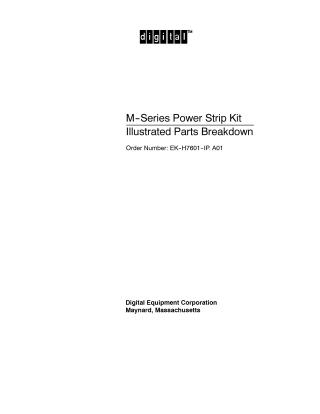

This document is an Illustrated Parts Breakdown (IPB) for the M-Series Power Strip Kit, published by Digital Equipment Corporation in December 1998. Its primary purpose is to help users identify parts and their locations within the power strip kit.

The document provides:

• Instructions on how to use the IPB: Guiding users to locate items in figures and then in the associated parts list.
• Format details: Explaining the organization by figures, numeric callouts, and the structure of the parts list.
• Parts List: Which includes figure and item numbers, part descriptions (distinguishing subassemblies with asterisks), Digital/Vendor part numbers, ECO cut-in information, "Used On" codes (for 120V and 220V variations), and cross-references.
• ECO/Revision History: Detailing the initial and current revision levels.
• Detailed illustrations: Showing the assembly and installation of both 120V (3X-H7601-AA) and 240V (3X-H7601-AB) power strip kits within H9A11 and H9A10/15 cabinets, highlighting components like the power strip connectors, mounting brackets, nuts, and screws.
• A comprehensive list of parts: Including 7-outlet and 6-outlet NEMA power strip connectors, power bar mounting brackets, U-nuts, various screws, and power cord assemblies.

Additionally, the document includes standard corporate disclaimers regarding the right to modify products, non-responsibility for errors, intellectual property rights, and restricted rights for U.S. Government use. It also lists trademarks and provides contact information for reader comments.
