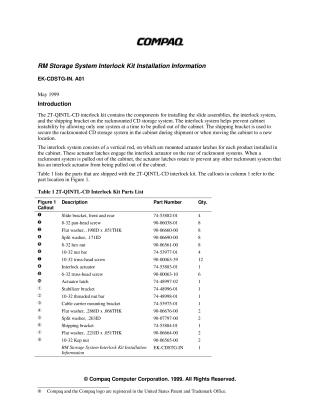

RM Storage System Interlock Kit Installation Information

This document provides detailed installation instructions for the Compaq 2T-QINTL-CD interlock kit, designed for rackmounted CD storage systems. The kit contains components for installing slide assemblies, an interlock system, and a shipping bracket.

The slide assemblies enable the mounting of the CD storage system into a 19-inch EIA cabinet, occupying a specified vertical space. Their installation involves attaching front and rear slide brackets to the slide assemblies, securing them to the cabinet rails, and finally positioning the CD storage system chassis onto the slide assemblies.

The interlock system enhances cabinet stability by preventing more than one system from being pulled out of the cabinet at a time. Its installation includes mounting an interlock actuator on the CD storage system chassis, sliding an actuator latch and stabilizer bracket onto a vertical rod, and securing these components to the cabinet rails.

The shipping bracket is used to secure the rackmounted CD storage system within the cabinet during shipment or relocation. Its installation involves mounting a cable carrier bracket, aligning and securing the shipping bracket over existing screws, and then fastening it to the cabinet's rear rail. The document includes a parts list and refers to a figure (not provided in the text) for part locations.
