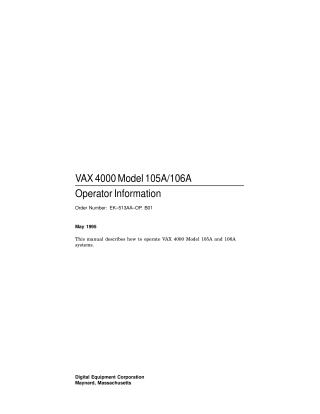

VAX 4000 Model 105A/106A Operator Information

This manual provides comprehensive instructions for operating and maintaining VAX 4000 Model 105A and 106A systems. It covers the system hardware, including differences between the models, terminal settings, and system unit icons. A substantial part of the document is dedicated to the operation of internal system devices, such as TZ30, TZK10/TZK11 QIC, and TLZ06/TLZ07 cassette tape drives, RX23/RX26 diskette drives, and RRD42/RRD43 compact disc drives, detailing their controls, LED indicators, and procedures for inserting and removing media.

The document also offers extensive guidance on network configuration, including connecting to ThinWire Ethernet, standard Ethernet, and DECconnect faceplates, along with steps for selecting Ethernet types, testing installations, and disconnecting from networks. It describes how to connect various hardware options, such as memory modules, synchronous and asynchronous communication devices, and DSSI/SCSI expansion boxes, providing guidelines for connections and SCSI ID selection. Supplementary information includes instructions for the care and handling of removable storage media (tape cartridges, QIC tapes, cassette tapes, and compact discs) and console-mode procedures for programming and examining Digital Storage System Interconnect (DSSI) device parameters.
