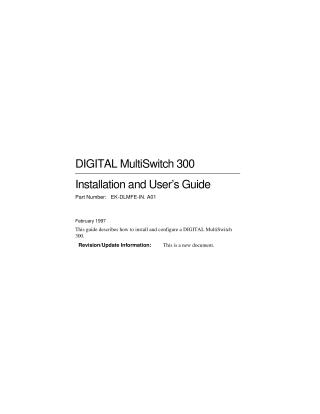

DIGITAL MultiSwitch 300 Installation and

This document is a comprehensive installation and user guide for the DIGITAL MultiSwitch 300, a 12-port Fast Ethernet switch designed to increase network bandwidth and distance. It features eight autonegotiating 10/100BaseTX ports and supports up to four additional uplink ports via plug-in modules. The switch employs a parallel store-and-forward architecture for wire-speed data reception and forwarding, includes selective flow control to prevent packet loss, and supports full-duplex operation for up to 200 Mb/s connections and extended fiber optic distances (up to 18 km).

The guide covers various aspects including:

• Installation and Setup: Step-by-step instructions for physical installation, cabling (FX and TX), and interpreting LED indicators.
• Network Configurations: Illustrates typical network setups like single-server, multiple-server, 100 Mb/s, and multiple server/WAN environments, along with discussions on flow control and repeater count limits.
• Management: Details how to manage the switch as a standalone unit or via an SNMP-compliant Network Management System (NMS). It provides extensive command-line interface (CLI) instructions for configuring system parameters, IP settings, SNMP agent, switching database (including virtual addresses and custom filtering), Virtual LANs (VLANs), Spanning Tree protocol, and individual port settings.
• Troubleshooting: Offers procedures for resolving issues with the MultiSwitch 300 and its SNMP manager.
• Specifications and Support: Includes detailed product specifications, a reference for all console commands, system default values, and information on ordering additional documentation and support services.

The guide is intended for personnel responsible for installing and configuring the DIGITAL MultiSwitch 300 system.
