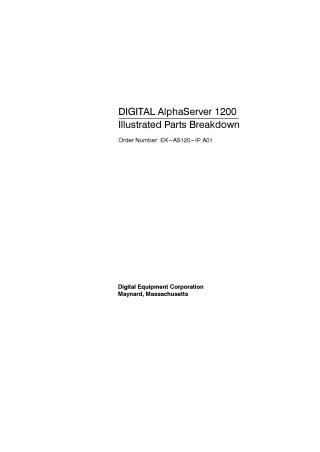

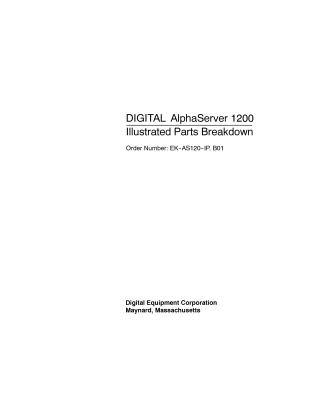

DIGITAL AlphaServer 1200

This document is an Illustrated Parts Breakdown (IPB) for the DIGITAL AlphaServer 1200. Its primary purpose is to identify parts and their locations within the hardware product. The manual is organized with figures (illustrations) that visually depict components, followed by associated parts lists that detail each item with a figure and item number, description, Digital/Vendor part number, ECO cut-in information, and usage codes.

The document includes:

• Kernel Assemblies: Listing various AlphaServer 1200 kernel configurations, CPU modules, PCI cards (Ethernet, SCSI), and associated labels.
• System Box Enclosure Assembly: Detailed breakdown of the system chassis, including frame components, covers, panels, microswitches, storage backplanes, speakers, fan assemblies, floppy drives, SCSI bus extenders, OCP modules, terminators, EMI clips, and an extensive list of internal cables (power supply harnesses, SCSI cables, floppy drive cables, OCP module cables).
• ECO/Revision History: A table tracking initial and current levels of assemblies and their printing dates.
• Indexes: A comprehensive index by Digital Part Number and by Part Description to facilitate finding specific components.

The IPB uses asterisks to denote subassemblies (*) and subordinate items (**), and indicates Field Replaceable Unit (FRU) level parts with a specific symbol. It also includes copyright information, trademark acknowledgements, and a section for reader comments.
