FCO

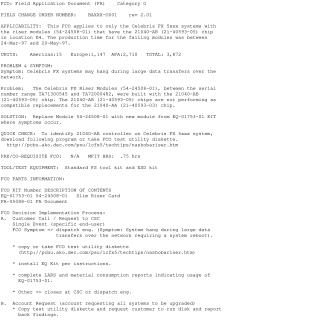

This Field Change Order (FCO) addresses an issue affecting Celebris FX 5xxx systems, where they may hang during large data transfers over the network. The problem is attributed to specific riser modules (part number 54-24508-01) manufactured between March 24, 1997, and May 20, 1997. These modules contain an incompatible 21040-AB (21-40593-05) chip in location E4, which is not a proper replacement for the 21040-AA (21-40593-03) chip. Approximately 3,872 units worldwide are affected.

The solution involves replacing the faulty 54-24508-01 riser module with a new one obtained from the EQ-01753-01 KIT, which includes a Slim Riser Card. Technicians can use a downloadable program or FCO test utility diskette to identify systems with the problematic 21040-AB controller. The document provides detailed repair instructions for replacing the riser card, emphasizing the critical need for ESD safety precautions to prevent damage to sensitive components. All labor and material consumption for this FCO must be reported via LARS using specified codes.
