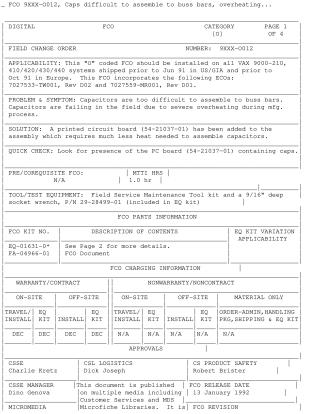

FCO 9XXX-0012, Caps difficult to assemble to buss bars, overheating...

This Field Change Order (FCO 9XXX-0012), released on January 13, 1992, addresses a manufacturing and field reliability issue affecting VAX 9000-210, 410/420, 430, and 440 systems shipped prior to June/October 1991.

The problem identified is the difficulty in assembling capacitors to buss bars, which causes severe overheating during the manufacturing process and leads to subsequent field failures.

The solution varies by system model:

• For VAX 9000 Models 410/420/430/440, the capacitors are to be replaced by a new X-Y Cap Card (P/N 54-21037-01). This printed circuit board assembly requires significantly less heat during capacitor assembly, resolving the manufacturing issue.
• For VAX 9000 Model 210, the entire DC filter assembly (P/N 70-27533-01) is to be replaced.

The installation is estimated to take 1.0 hour and requires a field service maintenance tool kit and a 9/16" deep socket wrench. The document provides detailed installation procedures for both Model 4xx and Model 210 systems, including system shutdown, power disconnection, removal of old components, installation of the new parts, and reassembly. Field engineers are instructed to report the activity on a LARS form. The necessary material for this FCO is provided free of charge to customers.
