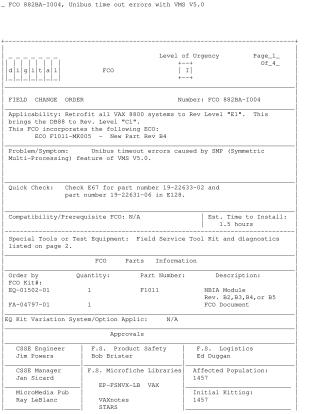

FCO 882BA-1004, Unibus time out errors with VMS V5.0

This Field Change Order (FCO 882BA-1004) addresses Unibus timeout errors occurring in VAX 8800 systems. The problem is attributed to the Symmetric Multi-Processing (SMP) feature of VMS V5.0.

The solution requires retrofitting all VAX 8800 systems to Rev Level "E1," which updates the DB88 to Rev. Level "C1." This retrofit specifically incorporates ECO F1011-MK005, which is a new Part Rev B4. The installation involves replacing an F1011 NBIA Module with a Revision B2, B3, B4, or B5 module (part number EQ-01502-01).

The estimated installation time is 1.5 hours and necessitates a Field Service Tool Kit and various micro- and macro-diagnostics (e.g., EZKAJ, EZXCA, EZSAA). The procedure outlines steps for system shutdown, power-off, careful module replacement with ESD precautions, and extensive diagnostic verification of the new NBIA module before bringing the VMS operating system back online.

Released on February 1, 1988, with parts available that same month, this FCO affects an estimated population of 1457 systems. Post-installation, site management guides must be updated, and the FCO activity reported via the LARS system.
