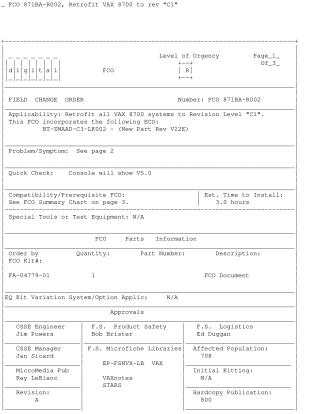

FCO 871BA-R002, Retrofit VAX 8700 to rev "C1"

This Field Change Order (FCO 871BA-R002) outlines the procedure to retrofit all VAX 8700 systems to Revision Level "C1." Issued on July 10, 1987, with parts available the same month, this FCO addresses several critical issues and incorporates ECO BT-ZMAAD-C3-LK002 (New Part Rev V22E).

The problems resolved include:

• Remote Port fixes for character loss and "Disable Local Console" command.
• Enabling I, U, and START commands to be initiated without requiring the machine to be halted.
• Allowing micro diagnostics to be invoked without typing the full word "TEST."
• Fixing system crashes when the PRO is powered off, which requires Console Revision "22E" and VMS V4.6.
• Resolving NBIB "Read Retry Timeout" errors with a CPU microcode change.

The retrofit process is estimated to take 3.0 hours and involves a specific FCO Kit (FA-04779-01). Importantly, Console Revision "22E" and the Read Retry Microcode are not part of EQ Kits and must be ordered separately (Console Rev "22E" part number ZM920). The installation procedure includes shutting down the system, powering it off, upgrading the console (referencing Console Release Notes), optionally reloading diagnostics, powering on the CPU, running VMS and UETP, updating the Site Management Guide, and reporting activity on the LARS form. The affected population for this FCO is 708 systems.
