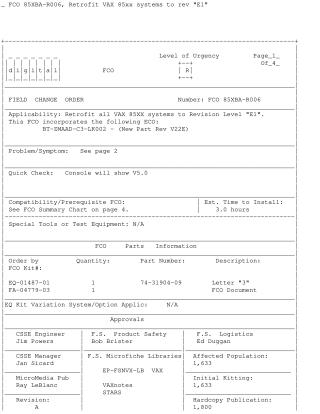

FCO 85XBA-R006, Retrofit VAX 85xx systems to rev "E1"

This Field Change Order (FCO 85XBA-R006) outlines a retrofit procedure for all VAX 85XX systems to bring them to Revision Level "E1". It incorporates ECO BT-ZMAAD-C3-LK002 (New Part Rev V22E) and addresses several issues, including:

• Remote Port problems causing character loss and issues with the "Disable Local Console" command.
• Inability to initiate I, U, and START commands without halting the machine.
• Requirement to type the full word "TEST" for micro diagnostics.
• System crashes when the PRO is powered off (requiring Console Rev "22E" and VMS V4.6 for the fix).
• "Read Retry Timeout" errors from the NBIB when multiple interlock-capable devices are on the BI, fixed by a CPU microcode change.

The installation is estimated to take 3.0 hours. Upon completion, the console should show V5.0. A unique physical modification is required: replacing the first '0' in the "8500" logo on the front of the machine with a '3' (making it "8530"). The document was released on July 10, 1987, with parts available that month, and affects an estimated 1,633 systems. Console Revision "22E" and the Read Retry Microcode are not included in EQ Kits but can be ordered separately. Users are instructed to consult Console Release Notes for building a new console and for reloading diagnostics if desired.
