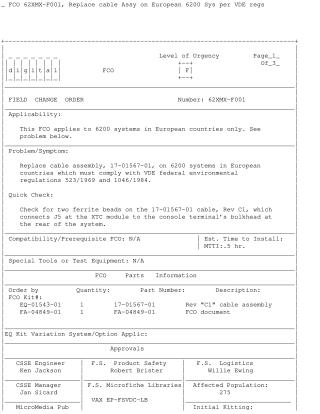

FCO 62XMX-F001, Replace cable Assy on European 6200 Sys per VDE regs

This Field Change Order (FCO 62XMX-F001) mandates the replacement of cable assembly 17-01567-01 on 6200 systems located in European countries. The replacement is necessary to ensure compliance with VDE federal environmental regulations 523/1969 and 1046/1984.

The procedure, estimated to take 0.5 hours, involves:

1. Shutting down and powering off the system.
2. Locating and carefully disconnecting the existing 17-01567-01 cable from the XTC module (J5) and the console terminal's bulkhead.
3. Installing the new Rev "C1" cable assembly.
4. Scrapping the old cable.
5. Restoring power and bringing up the operating system.
6. Updating the Site Management Guide and reporting the FCO activity on a LARS form.

The FCO kit (EQ-01543-01) includes the Rev "C1" cable assembly, and parts were available as of May 1989. This change affects an estimated 275 systems.
