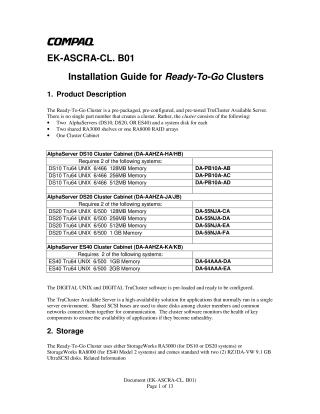

Installation Guide for Ready-To-Go Clusters

This document serves as an installation guide for Compaq's Ready-To-Go Clusters, which are pre-packaged, pre-configured, and pre-tested TruCluster Available Servers designed for high-availability. Each cluster includes two AlphaServers (DS10, DS20, or ES40), shared StorageWorks RA3000 or RA8000 RAID arrays with standard 9.1GB UltraSCSI disks, and a dedicated cluster cabinet. The systems come with DIGITAL UNIX and TruCluster software pre-loaded.

The guide details essential prerequisite requirements, including power specifications (100-120 VAC or 220-240 VAC with specific amperage and connectors), operating environment conditions (temperature, humidity, heat dissipation, and physical space), and additional hardware needed for management (monitor, keyboard, mouse).

Installation preparation is streamlined as the systems are delivered pre-cabled with the necessary software already loaded. The process involves simple hardware verification steps, such as powering up and checking disk recognition, followed by a Factory Installed Software configuration program that prompts for basic information like a Super User password and time zone. The document notes that network interconnects initially receive default IP addresses and system names, which can be changed post-installation but before running the cluster setup utility.

Further sections provide a Bill of Materials for various AlphaServer cluster cabinet types, listing all components and mandatory additions. It also includes color coding for cluster cabling and detailed cabinet diagrams illustrating component placement and cabling connections for DS10, DS20, and ES40 clusters. Additional resources for configuring specific applications and tuning clusters are also referenced.
