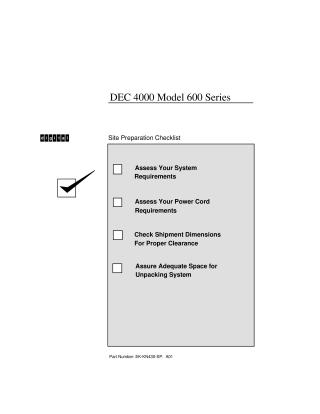

DEC 4000 Model 600 Series Site Preparation Checklist

This document is a site preparation checklist for the DEC 4000 Model 600 Series, outlining four critical steps: assessing system requirements, power cord requirements, shipment dimensions for proper clearance, and adequate space for unpacking.

For system requirements, it specifies maintaining 25.4 mm (1 inch) airflow clearance at the rear and sides, and provides detailed specifications including physical dimensions (e.g., 883 mm height, 124 kg max weight), environmental conditions (10-35°C operating temperature, 20-80% relative humidity), and power demands (1650 W max consumption, 104-128 VAC/208-256 VAC operating range). It notes the system's auto-sensing voltage and the need for a dedicated 20-ampere circuit for 120-volt systems.

The document also lists various country-specific 120-volt, 20-ampere power cords shipped with the system. Lastly, it provides the dimensions of the system as shipped (1.1 m H x 1.04 m W x 0.67 m D) and advises ensuring at least 3 meters (10 feet) of space for unpacking.
