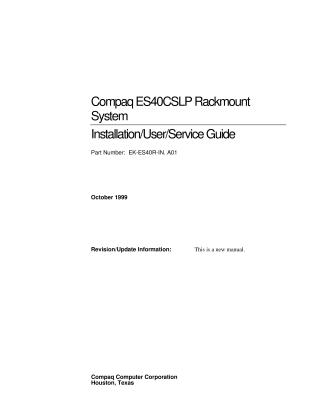

Compaq ES40CSLP Rackmount System Installation/User/Service Guide

This document is a comprehensive guide for the Compaq ES40CSLP Rackmount System, covering its installation, operation, maintenance, and troubleshooting. The ES40CSLP is described as a high-performance Alpha-based server, part of the AlphaServer ES40 product line, supporting Tru64 UNIX and OpenVMS operating systems.

The guide is structured to assist service personnel, self-maintenance customers, and system managers. It provides detailed procedures for physically installing the rackmount system into a 19-inch EIA cabinet, including site preparation, mounting, and connecting power and peripherals. It also outlines steps for installing various optional internal components such as CPU modules, memory motherboards and DIMMs, PCI option modules, and hard disk drives.

Operational aspects covered include powering up the system, interpreting SROM and SRM console power-up displays, configuring hardware settings (e.g., console/display devices, automatic booting, boot options via SRM environment variables), and updating system firmware. A dedicated section details the Remote Management Console (RMC), explaining its role in monitoring system health (voltages, temperatures, fans), controlling system states (power on/off, halt, reset) remotely, and its different operating modes and command-line interface.

Furthermore, the document offers extensive instructions for the removal and replacement of all major Field Replaceable Units (FRUs), ranging from covers and media drives (floppy, CD-ROM, hard disk) to core components like power supplies, CPU modules, memory motherboards, fan assemblies, and the system motherboard. Troubleshooting guidance includes strategies for diagnosing problems categorized by symptoms (power, console access, boot, OS errors), and details on using various diagnostic tools and utilities, including Compaq Analyze, ROM-Based Diagnostics, and SRM console commands, alongside error log analysis. Appendices provide hardware specifications, FRU part numbers, and jumper/switch configurations.
