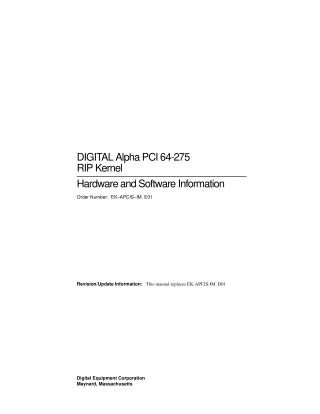

DIGITAL Alpha PCI 64-275 RIP Kernel Hardware and Software Information

This document provides comprehensive hardware and software information for the DIGITAL Alpha PCI 64-275 RIP Kernel, a PC enclosure featuring an Alpha PCI 64-275 motherboard designed for raster image processing due to its fast processor. It guides users through initial setup, including connecting components and understanding power warnings.

The manual details the installation and reinstallation of Microsoft Windows NT (versions 3.51 and 4.0), covering essential steps like hard disk partitioning (emphasizing FAT for system files and the option for NTFS for applications, with a warning about fragmentation), and using specific firmware diskettes.

Key sections explain the RIP Kernel's firmware, particularly the ARC Console for system booting and the Debug Monitor as a failsafe for corrupt ARC images. Procedures for updating both ARC Console and Debug Monitor flash images are provided.

The document also covers altering initial system parameters, viewing configuration information, and extensive troubleshooting for common problems related to Windows NT installation, computer operation, disk drives, and monitors.

For hardware maintenance, it offers instructions for disassembly and reassembly of the system, including removing and replacing major Field Replaceable Units (FRUs) like the cover, diskette drives, hard drives, CD-ROM drive, motherboard, and power supply, along with guidelines for adding memory (SIMMs).

Finally, it includes information on motherboard operating environment characteristics, regulatory conformance statements (FCC, acoustics), technical support contact procedures, and a detailed warranty statement covering eligible FRUs and purchaser responsibilities.
