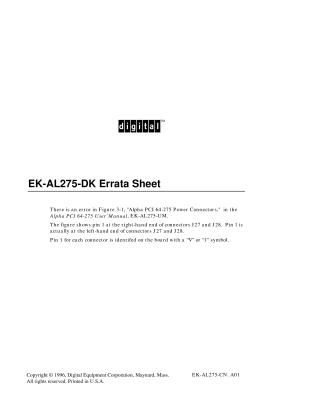

EK-AL275-DK Errata Sheet

This errata sheet corrects an error in Figure 3-1, titled "Alpha PCI 64-275 Power Connectors," within the "Alpha PCI 64-275 User'Manual, EK-AL275-UM." The original figure incorrectly depicts pin 1 at the right-hand end of connectors J27 and J28. The correction states that pin 1 is actually located at the left-hand end of these connectors, and it is identified on the board by a "V" or "1" symbol.
