VAXstation 4000 3D Graphics Options

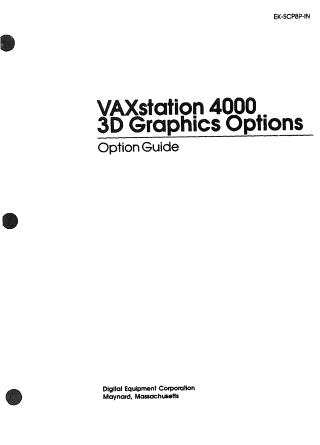

This document is the "VAXstation 4000 3D Graphics Options Option Guide" (EK-SCP8P-IN), published by Digital Equipment Corporation in February 1992. It provides comprehensive guidance for users installing and maintaining the PV61G-BA (8-plane) or PV61G-AA (24-plane) 3D graphics options in a VAXstation 4000 Model 60.

The guide is structured into three chapters and two appendices:

1. Overview and System Preparation: Details how to prepare the VAXstation 4000 Model 60 for the installation of new 3D graphics options. This includes shutting down the system, reviewing the current configuration, disconnecting peripherals, and removing the existing 2D graphics module.
2. Adding a 3D Graphics Option: Provides step-by-step instructions for both installing and removing the PV61G-BA 8-plane option and the PV61G-AA 24-plane option. It lists the components for each option and outlines specific installation procedures like checking switch settings and installing RFI gaskets.
3. Restoring the System: Covers the process of reassembling the system unit, restarting it, and performing various tests to verify the correct operation of the newly installed 3D graphics option. This includes automatic self-tests, using the SHOW CONFIG command, and running the TEST 100 system exerciser. It also offers troubleshooting advice for display problems and error messages, advising users to contact Digital Services if issues persist.

Appendices include hardware specifications (environmental conditions for operation, non-operation, and storage) and a list of associated documents.
