VAX 8600 Training Print Set

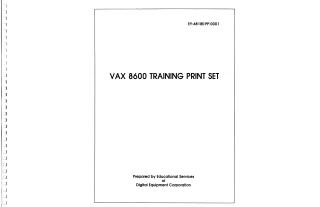

This document is the "VAX 8600 TRAINING PRINT SET," a highly technical training manual prepared by the Educational Services of Digital Equipment Corporation (DEC) and first published in January 1986.

It provides in-depth architectural and functional details of the VAX 8600 computer system through a comprehensive collection of block diagrams, data path diagrams, control path diagrams, timing diagrams, and register definitions. Key areas covered include:

• CPU Architecture: Detailed breakdowns of the Venus CPU, including its EBox and IBox components, data and control paths, microwords, and system pipeline flow.
• System Bus Interfaces: Comprehensive information on the SBI (System Bus Interconnect) and SBIA (System Bus Interface Adapter), including registers, state machine flows, and protocol decisions, as well as diagrams for the QBus, CBus, and Serial Data Bus (SDB).
• Control and Timing Systems: Documentation for the Console Module, Clock Module (detailing its block diagram, I/O pin connections, phases, and relative times), and Microsequencer.
• Memory and Data Processing: Diagrams illustrating the FBox (functional box), IBD Module (instruction buffer/decoder), ICA, ICB, IDP, and Address Module, alongside specific timing diagrams for 4 MByte memory read and write cycles.

The document serves as a comprehensive technical reference for understanding the intricate hardware design and operation of the VAX 8600.
