This document, "Quickspecs," provides detailed technical specifications and configuration options for the Compaq AlphaServer ES40 and Compaq AlphaStation ES40 systems. It covers various aspects of the systems, including:

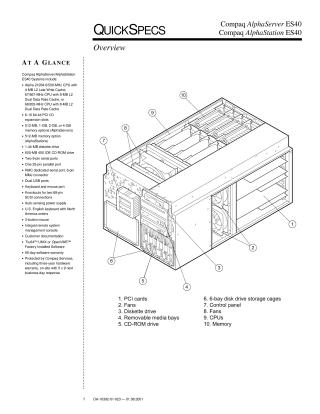

Overview: A brief introduction to the ES40 systems, highlighting key features such as the Alpha 21264 CPU, memory options, I/O slots, storage devices, and connectivity. A labeled diagram illustrates the internal components.

Standard Features: This section details the standard specifications of the ES40 systems, covering processors, cache memory, memory capacity, expansion slots, storage (diskette, CD-ROM, hard drives), interfaces (parallel, serial, USB, keyboard, mouse), graphics (optional), form factor (tower, pedestal, rackmount), power supply, and manageability features. It also outlines the supported operating systems (Tru64 UNIX and OpenVMS) and provides information on service and support.

Systems/Options: This comprehensive section guides users through configuring their ES40 system. It outlines mandatory selections, such as the system disk drive, Ethernet adapter, and enclosure type. It then lists various optional components categorized by type, including:

• Additional CPU Modules: For multi-processor configurations.
• Memory: Options for expanding system memory.
• Additional Power Supplies: To support increased configurations.
• Disk Drive Cage or StorageWorks Shelf: For storage expansion.
• Storage Devices: Including internal and external tape drives and CD-ROM drives.
• Ethernet Adapters: For network connectivity.
• System Enclosures: Tower, pedestal, or rackmount options.
• M-Series Cabinets: Details on cabinet configurations and their system capacity.
• Storage Adapters/Controllers: For managing storage devices.
• Networking Adapters/Controllers: For various networking protocols.
• Memory Channel: For high-performance clustering applications.
• Graphics Adapters: For display output.
• Monitors: Compatible monitor options.
• Keyboards, Power Cords, Documentation: Including country-specific keyboards and power cords.
• Console Terminal: For system management.
• Upgrade Kits: To enhance system capabilities.
• Software: Required media and documentation for Tru64 UNIX and OpenVMS.
• Hardware and Software Supplemental Support Services: Warranty and support options.

Technical Specifications: This section provides detailed physical and environmental specifications for the different configurations:

• Tower Configuration: Dimensions, shipping dimensions, weight, and clearances.
• Pedestal Configuration: Dimensions, shipping dimensions, weight, and clearances.
• Rackmount System: Dimensions, shipping dimensions, weight, and clearances.
• Cabinet Configuration (M-Series): Dimensions, shipping dimensions, and weight for H9A10 and H9A15 M-Series cabinets.
• System Unit: Environmental specifications (temperature, humidity, altitude), heat dissipation, air flow, acoustics, and vibration.
• Electrical: Power supply specifications, including voltage, frequency, RMS current, and power cords for different configurations.
• Regulatory: Agency approvals and reviewed standards.

The document serves as a comprehensive guide for understanding, configuring, and deploying Compaq AlphaServer ES40 and AlphaStation ES40 systems.
