Module Contact Finger and Module Connector Block Contact Identification

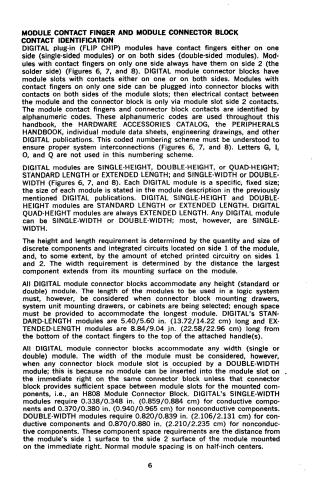

This document, "Module Contact Finger and Module Connector Block Contact Identification," outlines the physical characteristics and identification schemes for DIGITAL modules and their corresponding connector blocks. It details how modules are categorized by height (single, double, quad), length (standard, extended), and width (single, double). The document explains the alphanumeric coding used to identify contact fingers on modules and contacts within connector blocks, which is crucial for ensuring proper system interconnections. It also provides specifications for module dimensions, including height, length, and width, and how these relate to connector block compatibility and spacing. Illustrations are included to visually represent single-height, double-height, and quad-height modules and their contact arrangements, as well as a diagram of connector block slot identification. The document emphasizes that understanding these specifications is essential for correctly integrating modules into logic systems.
