VCB02

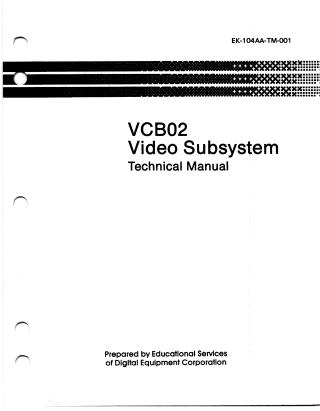

This document is the Technical Manual for the VCB02 Video Subsystem, prepared by Digital Equipment Corporation (DEC).

It provides detailed technical information for Original Equipment Manufacturers (OEMs) and corporate end-users on the VCB02's features, specifications, configurations, installation, functions, logic, programming, and diagnostics, specifically within a VAXstation II/GPX workstation environment.

The VCB02 is a high-performance, high-resolution (1024 x 864 pixels) raster scan video subsystem. It supports either 4-plane (16 colors) or 8-plane (256 colors) display from a palette of 16.7 million colors, and is compatible with both MicroVMS and ULTRIX-32 operating systems. A standard configuration includes a base module and one or two 4-plane modules, offering three megabytes of video memory.

The manual is structured into five main chapters covering:

• General Description: Overview of VCB02 features and operational aspects.
• Configurations and Installation: Details on setting up the VCB02 within a MicroVAX workstation.
• Functional Description: In-depth look at the hardware logic elements, processor chips, memory organization, timing, and interfaces.
• Programming Information: How to program common drawing operations, graphics, text, and utilize different drawing modes.
• Diagnostics: Information on diagnostic programs, error types, and troubleshooting.

Additionally, it includes appendices with specifications for the Q22-Bus, LK201 keyboard, mouse, and digitizing tablet.
