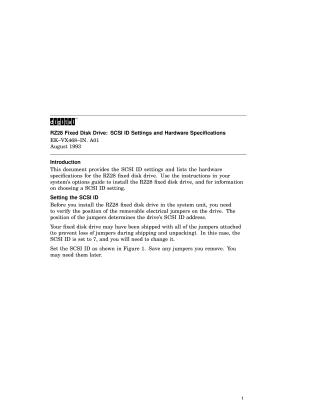

RZ28 Fixed Disk Drive: SCSI ID Settings & Hardware Specs

This document provides SCSI ID settings and hardware specifications for the RZ28 fixed disk drive.

Before installing the drive, users must set its SCSI ID by adjusting removable electrical jumpers, referring to Figure 1 for visual guidance. Drives may be shipped with the SCSI ID set to 7, necessitating a change, and any removed jumpers should be saved.

The document also details the RZ28's hardware specifications, including:

• Formatted Storage Capacity: 2.1 GB
• Buffer Size: 1024 KB
• Performance: 5400 RPM rotational speed, 2.7 MB/sec media transfer rate, up to 10 MB/sec synchronous interface transfer rate, and an average seek time of 10 msec.
• Environmental Conditions: Specified operating and non-operating temperature and humidity ranges.
