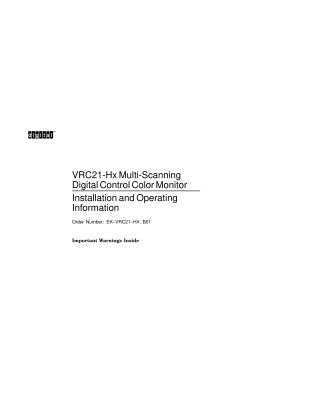

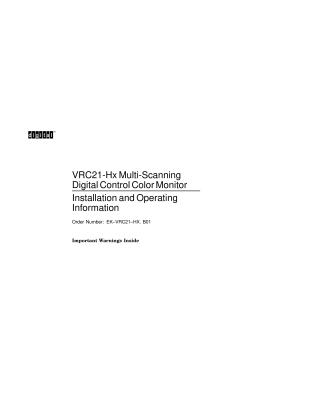

VRC21-Hx Multi-Scanning Digital Control Monitor Inst/Oper Info

This document is the Installation and Operating Information guide for the VRC21-Hx Multi-Scanning Digital Control Color Monitor.

It provides:

1. Product Overview: Describes the VRC21-Hx as a 21-inch, intelligent, microprocessor-based monitor with multi-scanning and digital control, compatible with most RGB display standards. It highlights the monitor's power management system, which exceeds EPA Energy Star requirements.
2. Safety and Regulatory Information: Includes FCC Class B and Canadian DOC compliance statements, important "Do's and Don'ts" for safe use and installation (e.g., avoiding opening the monitor, proper ventilation), and extensive ergonomic recommendations for comfortable and safe setup (chair, posture, lighting, noise, breaks). It warns against continued use if pain or discomfort occurs.
3. Installation Instructions: Step-by-step guide on how to connect the monitor to a computer using BNC connectors and how to power it on, including details on sync and power management switches.
4. Operating Controls: Explains the functions of the front panel controls such as power, degaussing, contrast, brightness, memory recall, and adjustment buttons for various display parameters.
5. Maintenance and Troubleshooting: Provides instructions for cleaning the monitor (with warnings against certain chemicals) and a detailed troubleshooting table that lists common display symptoms, possible causes, and suggested solutions (e.g., blank screen, distorted image, off-center display).
6. Adjustment Mode: Describes how to access and use the monitor's adjustment mode to fine-tune various display characteristics, including horizontal/vertical position and size, color balance, rotation, and geometry corrections (e.g., PCC-Amp, Key-Balance, Pin-Balance).
7. Servicing and Disposal: Warns users not to attempt self-service due to high voltages and directs them to qualified service representatives. It outlines Digital's mail-in (DECmailer) and carry-in service options and advises on proper disposal procedures to prevent hazards.
8. Technical Specifications: Lists detailed specifications for the monitor, including physical dimensions, display characteristics, video signal compatibility, connectors, power input, and environmental conditions. It also provides a table of factory pre-set display resolutions and scanning frequencies.
9. Environmental Commitment: Highlights the product's design to minimize environmental impact, noting its recyclable packaging and materials (no asbestos, PBDE, ODS, or rigid PVC) and its low acoustic levels.
