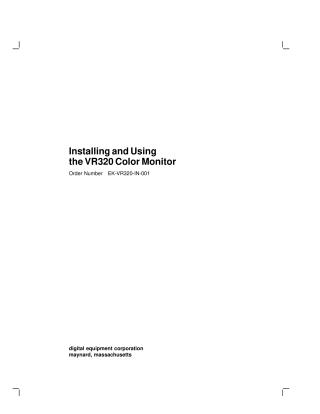

VR320 Monitor Installation Guide

This document is an instruction manual for the Digital Equipment Corporation VR320 Color Monitor.

It provides step-by-step guidance on:

• Unpacking and Setup: Details on how to unpack the monitor (noting its significant weight of approximately 29 kg/63 lbs, requiring two people), place it on a level surface, and connect it to a host system via video and power cables. It highlights the monitor's auto-ranging power supply and built-in tilt-swivel stand.
• Operation: Explains how to turn on the monitor and adjust its controls, including contrast, brightness, horizontal and vertical centering, and the degauss switch for correcting color distortion.
• Maintenance: Covers basic screen cleaning and offers a comprehensive troubleshooting guide (Table 4-1) for identifying and resolving common problems like power issues, blank screens, poor color, or distorted displays, by checking connections, adjusting settings, or contacting service.
• Service: Outlines various maintenance and repair service options provided by Digital Equipment Corporation, including on-site, off-site, carry-in, and mail-in services.
• Specifications: Provides detailed technical specifications such as dimensions, weight, display resolution (1280 x 1024 pixels), video input requirements, electrical specifications, and environmental operating conditions.

The manual also includes a standard FCC notice regarding radio frequency energy emissions.
