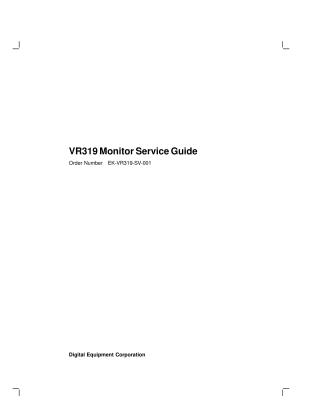

VR319 Monitor Service Guide

This document is the VR319 Monitor Service Guide, published by Digital Equipment Corporation in May 1990.

It is intended for service technicians trained by Digital Equipment Corporation and provides comprehensive procedures for maintaining and repairing the VR319 monochrome monitor.

Key areas covered include:

• Overview: Product description, model variations (66 Hz or 72 Hz refresh rates), required tools, and a list of recommended spare parts.
• Troubleshooting: Procedures and detailed tables to diagnose common problems like blank screens or poor display quality, guiding technicians through fault isolation and suggested solutions.
• Removing and Replacing Field Replaceable Units (FRUs): Step-by-step instructions for safely removing and replacing components such as the power supply, deflection module, video casting assembly, and interconnect cable. This section includes critical safety warnings regarding high voltage, static discharge, and detailed procedures for discharging and safely disposing of the CRT (Cathode Ray Tube), which is strictly for trained personnel at a Digital facility due to implosion risks.
• Aligning the Video Monitor: Procedures for adjusting the monitor's display characteristics, including height, width, centering, linearity, vertical hold, bias (G2), gain, and focus (G4), often requiring specific test patterns (circle-crosshatch, all-white) and measuring tools.
• Changing the Refresh Rate: Instructions for modifying the monitor's refresh rate by adjusting internal jumpers and updating product labeling.

The guide emphasizes safety warnings throughout, especially concerning handling high-voltage components and CRTs.
