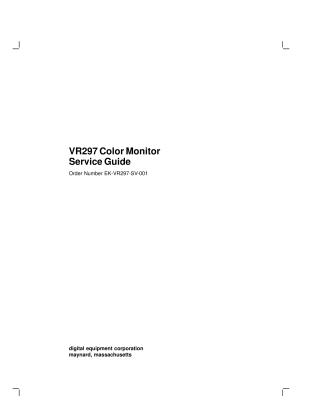

VR297 Color Monitor Service Guide

This document is the VR297 Color Monitor Service Guide, published by Digital Equipment Corporation in September 1989.

It provides comprehensive instructions for field servicing the VR297 color monitor, which features a 17-inch direct-view, antiglare screen. The guide covers three main areas:

1. Troubleshooting: Detailed flowcharts and procedures to diagnose various display problems, including no display, incorrect color, purity issues, misconvergence, geometric distortion, excess luminance, and bright areas on the screen.
2. Adjustments: Step-by-step instructions for calibrating the monitor's display, such as color adjustments (using a radiance meter), and deflection adjustments for vertical and horizontal linearity, centering, screen size, pincushion distortion, horizontal synchronization, and convergence.
3. FRU (Field Replaceable Unit) Removal and Replacement: Procedures for safely replacing major components and circuit boards (e.g., Power Supply/G Board, A, B, C, D, L, K boards, H/J Control Block, rear cabinet assembly).

Additionally, it includes lists of necessary tools, recommended spare parts, and information on diagnostic alignment screens. The guide is intended for technicians to perform repairs and calibrations on the VR297 monitor.
