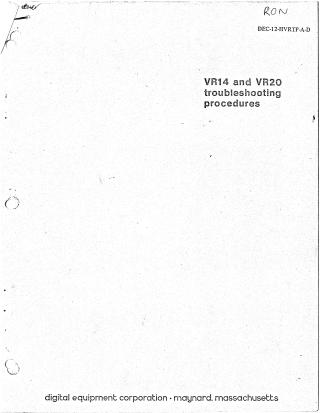

VR14 and VR20 Troubleshooting Procedures

This document provides detailed troubleshooting procedures for VR14 and VR20 Displays, focusing on identifying and correcting the underlying causes of component failures rather than just replacing faulty parts. It categorizes failures into three main symptoms:

1. Overheated Power Transistor and Shorted Transistors (Procedure A): This section outlines steps to prevent recurrent transistor failures, including proper replacement with thermal compound, checking emitter resistors, ensuring stable power supply voltages (±22V), and incorporating specific Engineering Change Orders (ECOs) on regulator cards (G836) and D/A converter boards (A225) to prevent voltage drifts or oscillations. A key recommendation is to rework the deflection heat sink (ECO #VR14-15) to improve cooling for the hotter X-deflection section, and for VR14 units, to reduce high voltage input to lower current.
2. W682 or W683 Intensity Board Failure/Overvoltage from Arcing CRT (Procedure B): This procedure addresses component damage caused by CRT arcing, which can induce overvoltage surges. It advises replacing fuses, power transistors, 709 operational amplifiers on the G836 regulator board, and, if arcing is a historical issue, the CRT itself.
3. Blown Fuse Only (Procedure C): This section guides troubleshooting when a fuse blows without other obvious component failures. It covers diagnosing external overloads, faulty connections (e.g., loose pins), intermittently excessive input deflection signals, and "power latch-up" problems. Latch-up occurs when rapid power cycling causes the deflection amplifier to saturate, driving the CRT beam off-screen and blowing the fuse, requiring a longer power-off period to reset.

The document stresses the importance of thorough diagnosis to ensure long-term stability and includes a detailed explanation for the field rework of the deflection heat sink.
