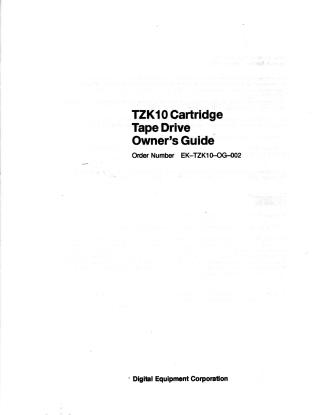

TZK10 Cartridge Tape Drive Owner's Guide

This document is the Owner's Guide for the TZK10 Cartridge Tape Drive, a half-height, 5-1/4 inch, Quarter-Inch Cartridge (QIC) streaming tape drive manufactured by Digital Equipment Corporation. It is designed for archival storage, retrieval, and data collection activities on low-end, desktop, and workstation systems, featuring a Small Computer System Interface (SCSI).

The guide covers:

1. Operating Procedures:

   • Controls and Indicators: Explains the function of the dual-color LED (indicating status like loaded, in motion, or fault) and the eject button.
   • Tape Cartridge: Details on compatible cartridges (e.g., DC6320, DC6525, and older QIC formats), proper handling (temperature, humidity, electromagnetic interference, storage), setting the write-protect switch, and step-by-step instructions for inserting and removing cartridges.
   • Retensioning: Recommends when and how to retension the tape for optimal performance, providing specific commands for ULTRIX, VMS, and SCO UNIX operating systems.
   • SCSI ID Settings: Guidance on configuring the drive's unique SCSI ID using jumpers, and information on Auto Density Select (DADS) and Terminator Power (TERMPWR) settings.

2. Operating Systems Support:

   • Discusses how the TZK10 interacts with various operating systems (VMS, ULTRIX, SCO UNIX, MS-DOS) regarding data formats (512-byte blocks, 1K blocks, variable records) and auto-density selection for reading and writing. ULTRIX and SCO UNIX generally favor 512-byte fixed blocks for interchange, while VMS supports high-density variable block mode.

3. Preventive Maintenance and Problem Resolution:

   • Head Cleaning: Strongly recommends periodic cleaning (every 8 hours of use) with a specified cleaning cartridge (TZK1X-HA).
   • Diagnostics: Advises using system-based diagnostics before seeking professional help.
   • Troubleshooting Errors: Explains how to interpret the amber LED fault indicator (media/dirty head vs. drive issue) and suggests initial troubleshooting steps.
   • Repair Services: Outlines various service plans offered by Digital Equipment Customer Services, including On-Site, Basic, DECservice, Carry-In, and Per Call options.

The document also includes appendices for Related Supplies (ordering information for blank data cartridges and cleaning cartridges) and detailed TZK10 Cartridge Tape Drive Specifications (dimensions, weight, transfer rates, capacity, environmental limits, etc.).
